There is no need to spend a fortune to have your own mountain log cabin. Using wise plans, materials that are cheap and a small 200 square feet design, you can have a warm and livable retreat for less than $13,000.
A cabin of 12 ft × 16 ft with the possibility of a 4 ft × 12 ft front porch is enough for weekend getaways, off-grid living or a tranquil writing studio. The cabin has a combined living/sleeping area, a small kitchenette, a full bathroom and smart storage, all of them designed to be comfortable and efficient. If you want to build a log cabin and still save money, follow this guide step by step.
The size of 12×16 ft or 192 sq ft of the interior is just right for a solo adventurer, a couple or a small family. It is enough to live the essentials and still costs are kept at a minimum and heating can be done efficiently with a wood stove. The 4×12 ft porch, which is optional, provides an additional 48 sq ft of the open space which is great for drinking your morning coffee while enjoying the mountain view or lying under the stars at night.
This small design can be accommodated in most rural lots, the site preparation is minimal and in many areas, it is considered a “tiny home” which means that it is exempted from strict building codes.
Foundation: Pier Blocks or Skid Base ($400–$800)
Don’t install an expensive concrete slab. Instead, use pier blocks or a skid foundation that is made of
- Level off the ground and set 8–10 concrete pier blocks in a grid
- Put 2×6 floor joists on the top
- Cover with ¾” plywood subfloor
Price: $400–$600. Building the floor frame on top, lay two 4×6 beams parallel for skids and the method is portable and thus, is a perfect option for leased land.
Framing: 2×4 Walls and Gable Roof ($1,800–$2,200)
Use commonly available 2×4 lumber for wall construction with a spacing of 24″ from the center. The pre-cut studs are convenient and efficient. Construct your walls on the floor and then raise and secure them. The gable roof is made of simple trusses constructed from 2×4s and gusset plates. Roof pitch: 8:12 to get rid of the snow. Use 4×4 posts and 2×6 rafters to extend the porch. Total timber for framing: approximately $2,000.
Exterior: Metal Siding and Roofing ($1,500–$2,000)
Clad your walls with metal siding (26-gauge corrugated panels) or cheap wood lap siding. Metal is a long-lasting, low-maintenance, and fire-resistant product – it is a great choice for mountain areas. Opt for 29-gauge metal roofing and choose a dark color if you want the roof to absorb the heat. Include soffit vents and ridge vents for ventilation. Install one 3×3 ft window and a steel entry door with a window. Total expenditure: less than $2,000.
Insulation and Interior ($1,200–$1,600)
R-13 fiberglass batts should be used for wall and ceiling insulation. For the walls use ½” drywall or pine tongue-and-groove paneling. Flooring: laminate or vinyl plank over plywood. Keep the finishing very basic – paint or stain the wood to give the cabin a warm look. Install wall shelves and built-in storage to maximize the space. Insulation + finishing: approximately $1,400.

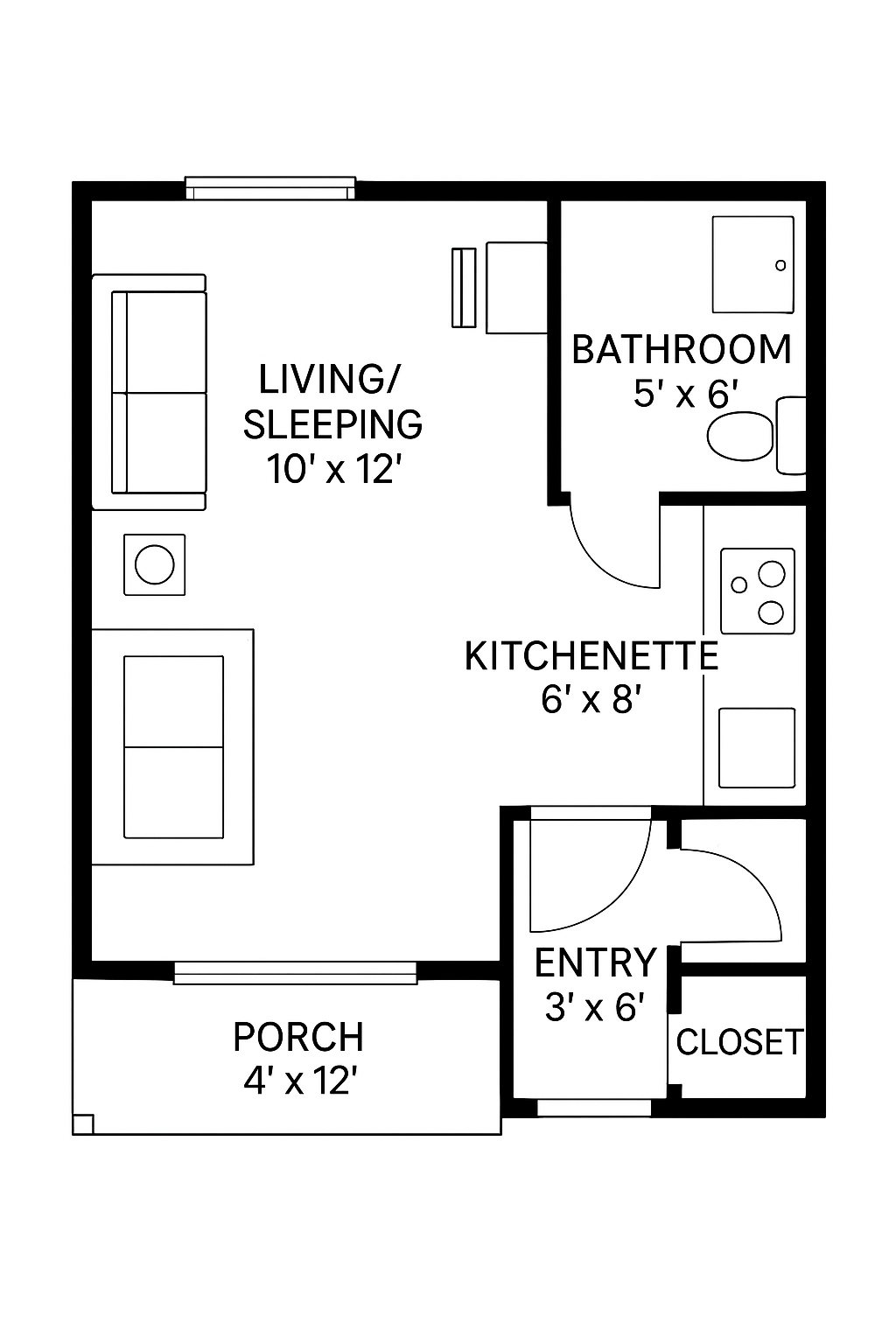

Interior Layout: Clever 192 Sq Ft Plan
1. Living/Sleeping Area (10 ft × 12 ft)
The multifunctional living/sleeping area is the cabin’s core. A futon sofa that turns into a full bed can be accommodated. Set up a corner wood stove (e.g., Dwarf 4kW, ~$900) or a small electric heater. Install wall shelves and, if you want, a loft bed above (reached by ladder) for additional sleeping. Folding furniture will allow you to make the most of the space.
2. Kitchenette (6 ft × 8 ft)
Being small but still complete. A 24″ base cabinet with countertop, single-bowl sink, and 2-burner electric cooktop can be installed. A mini-fridge (10 cu ft) and microwave can be added. Include open shelves above and cabinets below. Total appliance cost: about $600.
3. Bathroom (5 ft × 6 ft)
Inside a 32″ shower stall, small vanity with sink, and composting toilet (Nature’s Head, ~$1,000) or RV flush toilet can be fitted. The space-saving fixtures and a pocket door can be used here. Plumbing: PEX piping for a simple DIY installation.
4. Entry/Closet Nook (3 ft × 6 ft)
Great for storing coats, boots, and gear. Wall hooks, a bench, and an overhead shelf can be added. Use this area as a mudroom to keep the main area clean.
Electrical and Plumbing ($1,200–$1,800)
You can either put a 30-amp RV-style power inlet or a solar panel system. Wire 4–6 outlets, 3 LED light fixtures, and a GFCI for the bathroom/kitchen. Use PEX for the water lines and PVC for the drains. Are you off the grid? Then, put a 100W solar kit (~$300) along with a composting toilet. Grand total: ~1,500.
Heating: Wood Stove or Electric ($900–$1,200)
The least expensive and most atmospheric way to heat is by using a small wood stove. Do the installation together with the proper clearances and a chimney kit. As an alternative you may consider a 5,000W electric heater with a thermostat. You may also put a ceiling fan to facilitate airflow in summer.
Material Cost Breakdown
| Item | Cost |
|---|---|
| Foundation (pier blocks) | $500 |
| Framing lumber | $2,000 |
| Metal siding + roof | $1,800 |
| Windows + door | $600 |
| Insulation + drywall/paneling | $1,400 |
| Kitchenette (cabinets, appliances) | $1,000 |
| Bathroom fixtures | $1,200 |
| Wood stove + chimney | $1,100 |
| Electrical + plumbing | $1,500 |
| Furniture + misc | $800 |
| Total | $11,900 |
Construction Tips for Success
- Buy in bulk: Get lumber and metal from local mills or salvage yards
- DIY everything: Save 50%+ vs hiring contractors
- Use reclaimed materials: Old barn wood, pallets, or Craigslist finds
- Build in phases: Foundation → frame → roof → interior
- Get permits: Check local codes for “accessory structures” under 200 sq ft
Why This Cabin is Perfect for Mountain Getaways
At 200 sq ft, this cabin heats with one load of wood, cools quickly, and maintains easily. The loft option adds sleeping for guests without expanding the footprint. The porch extends your living space into nature. It’s the ultimate low-cost, high-comfort mountain escape—whether for hunting, hiking, writing, or simply unplugging from the world.
With discipline, planning, and elbow grease, your dream log cabin can be built for under $13,000. Start small, dream big, and enjoy the satisfaction of creating your own mountain sanctuary.
